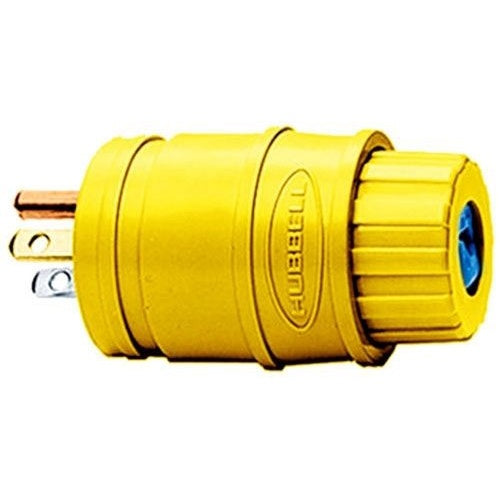

Hubbell HBL14W47 15A Watertight Elastogrip Plug

Overview

Hubbell HBL14W47 15A Watertight Elastogrip Plug

Product Specifications

• UPC: 78358501300
• Ground Type: Grounding
• Cord Size: 0.3 to 0.655 Inch
• Material: Thermoplastic Elastomer
• Color: Yellow
• Approval: UL 498, CSA C22.2
• Additional Information: Housing Material PVC; Blade Holder Material Nylon; Clamp Material Nickel Plated Steel; Screw Size #8-32 TPI Brass; Terminal Retainer Material Clear Polycarbonate; Enclosure Rating IP20, IP55; Applicable Standard NEMA WD-6
• Catalog Number: HBL14W47
• Brand Name: Wiring Device-Kellems
• Constructional Feature: Water Tight
• Configuration: 5-15P
• Voltage Rating: 125 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, MALE PLUG, ELASTO-GRIP WATER TIGHT, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15P, YELLOW, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Thermoplastic Elastomer Material; Yellow Color; 5-15P Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Water Tight; 0.3 to 0.655 Inch Cord Size; Elastogrip [R] Brand; Housing Material PVC; Blade Holder Material Nylon; Clamp Material Nickel Plated Steel; Screw Size #8-32 TPI Brass; Terminal Retainer Material Clear Polycarbonate; Enclosure Rating IP20, IP55; Applicable Standard NEMA Wd-6
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585013008
• SKU Name: hubw hbl14w47
