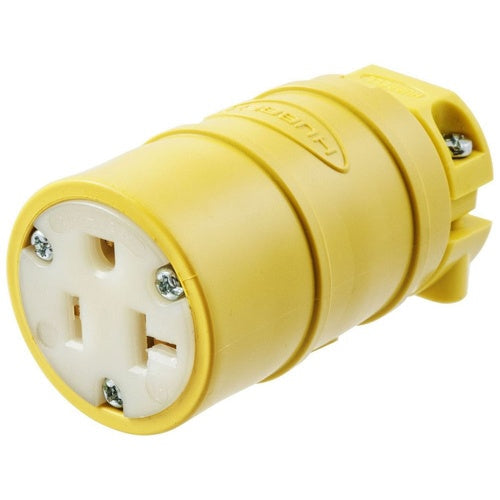

Hubbell HBL1533 20A Elastogrip Connector

Overview

Hubbell HBL1533 20A Elastogrip Connector

Product Specifications

• UPC: 78358501335
• Number Of Wires: 3
• Ground Type: Grounding
• Color: Yellow
• Cord Size: 0.3 to 0.655 Inch
• Material: Elastomer
• Approval: UL 498, UL FS, CSA C22.2
• Additional Information: Blade Material 0.04 Inch Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL1533
• Brand Name: Elastogrip[R]
• Type: Polarized
• Constructional Feature: Dusttight
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DEVICES, FEMALE CONNECTOR BODY, ELASTO-GRIP DUST TIGHT, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2- POLE 3-WIRE GROUNDING, 20A 125V, 5-20R, YELLOW, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Elastomer Material; Yellow Color; 5-20R Configuration; 3 Wire(S); UL 498, UL FS, CSA C22.2 Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); Dusttight; 0.3 to 0.655 Inch Cord Size; ELASTOGRIP[R] Brand; Blade Material 0.04 Inch Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585013350
• SKU Name: hubw hbl1533

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
