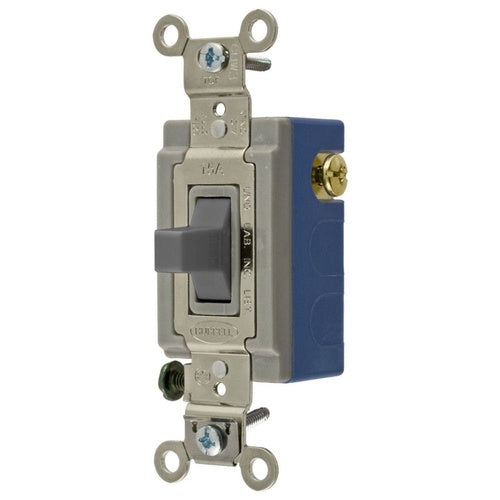

Hubbell HBL1556GY Spdt 15A Momentary Contact Switch

Overview

Hubbell HBL1556GY Spdt 15A Momentary Contact Switch

Product Specifications

• UPC: 78358543276
• Contact Configuration: SPDT
• Handle Type: Toggle
• Color: Gray
• Size: 1.31 Inch W x 1.13 Inch D x 4.06 Inch H
• Wiring: Back, Side
• Application: Heavy-Duty, Industrial, Specification Grade
• Approval: UL, CSA
• Additional Information: Material Thermoset (Base), Nylon (Toggle); Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL1556GY
• Brand Name: HBL[R]
• Model: HBL1556
• Type: 3-Position 2-Circuit
• Current Rating: 15 Ampere
• Voltage Rating: 120 to 277 VAC
• Power Rating: 0.5 HP at 120 V, 2 HP at 277 V
• Operation Type: Momentary
• Catalog Description: SWITCHES AND LIGHTING CONTROLS, INDUSTRIAL GRADE, TOGGLE SWITCHES, GENERAL PURPOSE AC, MOMENTARY SINGLE POLE DOUBLE THROW CENTER OFF, 15A 120/277V AC, TERMINAL SCREWS, GRAY TOGGLE
• Category: General Purpose Switches
• Full Technical Description: 3-Position 2-Circuit Type; 1.31 Inch W X 1.13 Inch D X 4.06 Inch H Size; Gray Color; SPDT Contact Configuration; Momentary Operation Type; Toggle Handle Type; UL, CSA Approval; Heavy-Duty, Industrial, Specification Grade Application; 120 to 277 VAC Voltage Rating; 15 Ampere Current Rating; 0.5 HP at 120 V, 2 HP at 277 V Power Rating; Back, Side Wiring; HBL[R] Brand; Material Thermoset (Base), Nylon (Toggle); Temperature Rating -40 to 75 Deg C; HBL1556 Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Double Throw AC Switch
• Unspsc: 39122211
• UPC 12 Digit: 783585432762
• SKU Name: hubw hbl1556gy
