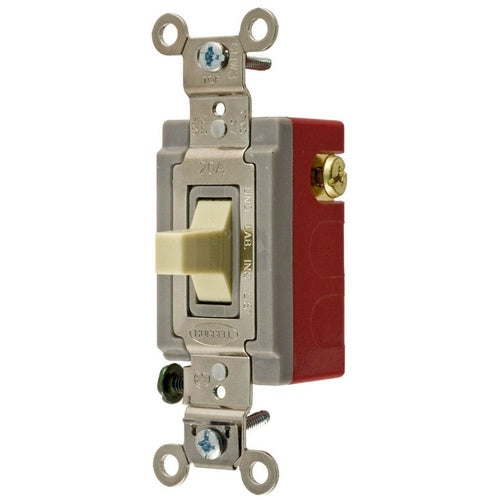

Hubbell HBL1557I Spdt 20A Momentary Contact Switch

Overview

Hubbell HBL1557I Spdt 20A Momentary Contact Switch

Product Specifications

• UPC: 78358543286
• Contact Configuration: SPDT
• Handle Type: Toggle
• Color: Ivory
• Size: 1.31 Inch Width x 1.13 Inch Depth x 4.06 Inch Height
• Wiring: Back, Side
• Wall Plate Included: No
• Application: Extra Heavy Duty, Industrial, Specification Grade
• Approval: UL 20, CSA
• Additional Information: Wire Size 14 to 10 AWG; Material Thermoset (Base), Nylon (Toggle); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2; Applicable Standard Federal Specification WS-896
• Catalog Number: HBL1557I
• Brand Name: Wiring Device-Kellems
• Model: HBL1557
• Type: 3-Position 2-Circuit
• Current Rating: 20 Amp
• Voltage Rating: 120 to 277 Volt AC
• Power Rating: 1 HP at 120 Volt, 2 HP at 277 Volt
• Operation Type: Momentary
• Catalog Description: SWITCHES AND LIGHTING CONTROLS, INDUSTRIAL GRADE, TOGGLE SWITCHES, GENERAL PURPOSE AC, MOMENTARY SINGLE POLE DOUBLE THROW CENTER OFF, 20A 120/277V AC, TERMINAL SCREWS, IVORY TOGGLE
• Category: General Purpose Switches
• Full Technical Description: 3-Position 2-Circuit Type; 1.31 Inch Width X 1.13 Inch Depth X 4.06 Inch Height Size; Ivory Color; SPDT Contact Configuration; Momentary Operation Type; Toggle Handle Type; UL 20, CSA Approval; Extra Heavy Duty, Industrial, Specification Grade Application; 120 to 277 Volt AC Voltage Rating; 20 Amp Current Rating; 1 HP at 120 Volt, 2 HP at 277 Volt Power Rating; Back, Side Wiring; No Wall Plate Included; Hbl [R] Brand; Wire Size 14 to 10 AWG; Material Thermoset (Base), Nylon (Toggle); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2; Applicable Standard Federal Specification Ws-896; HBL1557 Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Double Throw AC Switch
• Unspsc: 39122211
• UPC 12 Digit: 783585432861
• SKU Name: hubw hbl1557i
