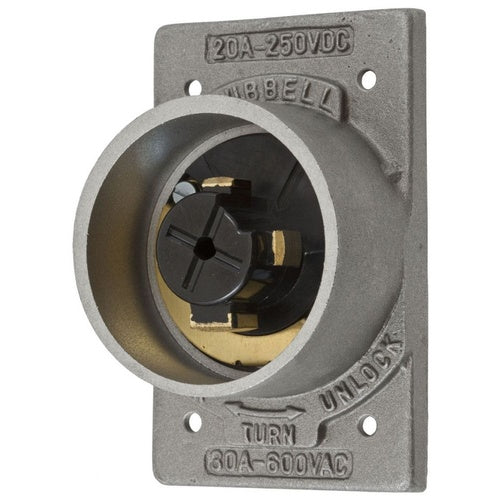

Hubbell HBL20418 Grounding Inlet 3P4W30A600V

Overview

Hubbell HBL20418 Grounding Inlet 3P4W30A600V

Product Specifications

• UPC: 78358501745
• Material: Cast Aluminum (Housing), Thermoset (Interior)
• Color: Black
• Approval: UL, CSA
• Additional Information: Enclosure IP30; Type Flush Mount, Polarized; Used On FD/FS Box
• Catalog Number: HBL20418
• Brand Name: Hubbellock[R]
• Model: HBL
• Voltage Rating: 600 VAC, 250 VDC
• Current Rating: 30 Ampere at 600 VAC, 20 Ampere at 250 VDC
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Catalog Description: LOCKING DEVICES, HUBBELLOCK, INDUSTRIAL, FLANGED INLET, 30A 600V AC, 20A 250V DC, 3-POLE 4-WIRE GROUNDING, BLACK PHENOLIC INTERIOR, ALUMINUM HOUSING, NON-NEMA, SCREW TERMINAL, FS/FD BOX MOUNTING, METALLIC
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Cast Aluminum (Housing), Thermoset (Interior) Material; Black Color; 4 Wire(S); UL, CSA Approval; 600 VAC, 250 VDC Voltage Rating; 30 Ampere at 600 VAC, 20 Ampere at 250 VDC Current Rating; Grounding; 3 Pole(S); HUBBELLOCK[R], TWIST-LOCK[R] Brand; Enclosure IP30; Type Flush Mount, Polarized; Used on Fd/Fs Box; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585017457
• SKU Name: hubw hbl20418

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
