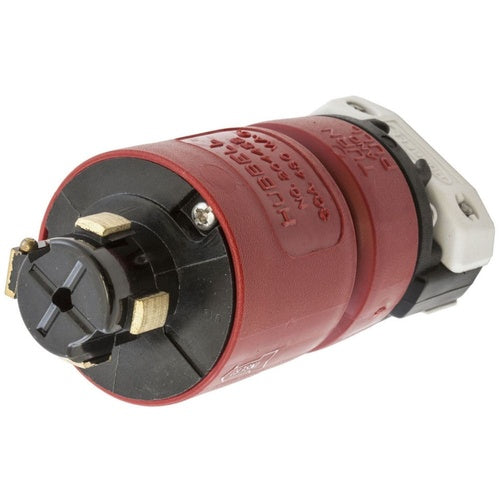

Hubbell HBL20445B 3P 4W Armored Connector

Overview

Hubbell HBL20445B 3P 4W Armored Connector

Product Specifications

• UPC: 78358501726
• Material: Nylon Housing, Thermoset Interior
• Approval: UL, CSA
• Additional Information: Overall Dimension 4.6 Inch Length x 2.33 Inch Width; Contact Material Brass; Enclosure Rating IP30; Temperature Rating -40 to 75 Deg C; Applicable Standard UL 94V-0
• Catalog Number: HBL20445B
• Brand Name: Wiring Device-Kellems
• Plug Rating: 480 Volt AC 30 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Color: Red
• Cord Size: 0.7 to 1.2 Inch
• Catalog Description: LOCKING DEVICES, HUBBELLOCK, INDUSTRIAL, MALE PLUG, 30A 3-PHASE 480V AC, 3-POLE 4-WIRE GROUNDING HUBBELLOCK PLUG, RED NYLON HOUSING, THERMOSET INTERIOR, NON-NEMA, SCREW TERMINAL
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Housing, Thermoset Interior Material; Red Color; 4 Wire(S); UL, CSA Approval; Grounding; 3 Pole(S); 0.7 to 1.2 Inch Cord Size; 480 Volt AC 30 Amp Plug Rating; HUBBELLOCK[R], TWIST-LOCK[R] Brand; Overall Dimension 4.6 Inch Length X 2.33 Inch Width; Contact Material Brass; Enclosure Rating IP30; Temperature Rating -40 to 75 Deg C; Applicable Standard UL 94V-0
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Power Interrupting Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585017266
• SKU Name: hubw hbl20445b
