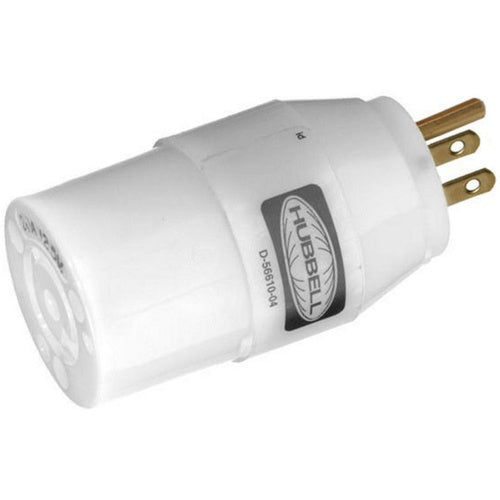

Hubbell HBL2128 5-15P To L5-20R Adapter

Overview

Hubbell HBL2128 5-15P To L5-20R Adapter

Product Specifications

• UPC: 78358580900
• Additional Information: Material Nylon; Number of Poles 2; Number of Wires 3; Number of Phase 1; Power Rating 2500 Watt; Color White; Overall Dimension 1.93 Inch Diameter x 3.32 Inch Length
• Catalog Number: HBL2128
• Female End Type: Locking
• Female End Rating: 125 Volt, 20 Amp
• Female End Configuration: 5-15P
• Male End Type: Straight Blade
• Male End Rating: 125 Volt, 15 Amp
• Male End Configuration: L5-20R
• Approval: UL
• Catalog Description: NYLON CONVENIENCE ADAPTER, NEMA 5-15P TO NEMA L5-20R
• Category: Miscellaneous Wiring Devices
• Full Technical Description: UL Approval; 5-15P Female End Configuration; Locking Female End Type; 125 Volt, 20 Amp Female End Rating; L5-20R Male End Configuration; 125 Volt, 15 Amp Male End Rating; Straight Blade Male End Type; Material Nylon; Number of Poles 2; Number of Wires 3; Number of Phase 1; Power Rating 2500 Watt; Color White; Overall Dimension 1.93 Inch Diameter X 3.32 Inch Length
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Plug Adapter
• Unspsc: 39121406
• UPC 12 Digit: 783585809007
• SKU Name: hubw hbl2128

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
