Hubbell HBL22CM427 Locking Receptacle 3P4W30A600V

Overview

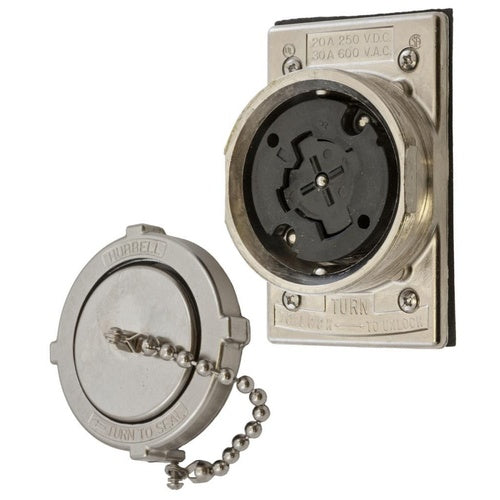

Hubbell HBL22CM427 Locking Receptacle 3P4W30A600V

Product Specifications

• UPC: 78358501736
• Material: Nickel Plated Brass Plate
• Mounting: Box
• Approval: UL, CSA
• Additional Information: Enclosure IP44
• Catalog Number: HBL22CM427
• Brand Name: Hubbellock[R]
• Model: HBL
• Type: Single
• Rating: 600 VAC 30 Ampere, 250 VDC 20 Ampere
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Catalog Description: HUBBELLOCK INDUSTRIAL RECEPTACLE, 30A 600V AC, 20A 250V DC, 3-POLE 4-WIRE GROUNDING, NON-NEMA, WEATHERTIGHT, CORROSION RESISTANT, NICKEL PLATED BRASS PLATE, SCREW TERMINAL, FS/FD BOX MOUNTING, METALLIC
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Nickel Plated Brass Plate Material; 4 Wire(S); UL, CSA Approval; Box Mounting; Grounding; 3 Pole(S); 600 VAC 30 Ampere, 250 VDC 20 Ampere Rating; HUBBELLOCK[R], TWIST-LOCK[R] Brand; Enclosure IP44; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Power Interrupting Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585017365
• SKU Name: hubw hbl22cm427

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
