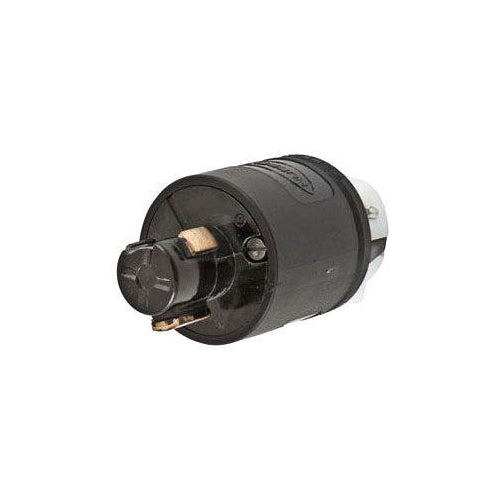

Hubbell HBL23005B Non-Metallic Plug 3P3W20A125V

Overview

Hubbell HBL23005B Non-Metallic Plug 3P3W20A125V

Product Specifications

• UPC: 78358501737
• Cord Size: 0.3 to 0.66 Inch
• Material: Thermoset Interior, Nylon Housing
• Approval: UL, CSA
• Catalog Number: HBL23005B
• Brand Name: Hubbellock[R]
• Model: HBL
• Plug Rating: 125 VAC 20 Ampere, 250 VDC 10 Ampere
• Number Of Poles: 3
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Color: Black
• Catalog Description: HUBBELLOCK INDUSTRIAL MALE PLUG, 20A 125V/10A 250V DC/480V AC, 2-POLE 3-WIRE GROUNDING, NON-NEMA, SCREW TERMINAL
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Thermoset Interior, Nylon Housing Material; Black Color; 3 Wire(S); UL, CSA Approval; Non-Grounding; 3 Pole(S); 0.3 to 0.66 Inch Cord Size; 125 VAC 20 Ampere, 250 VDC 10 Ampere Plug Rating; HUBBELLOCK[R], TWIST-LOCK[R] Brand; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Power Interrupting Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585017372
• SKU Name: hubw hbl23005b

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
