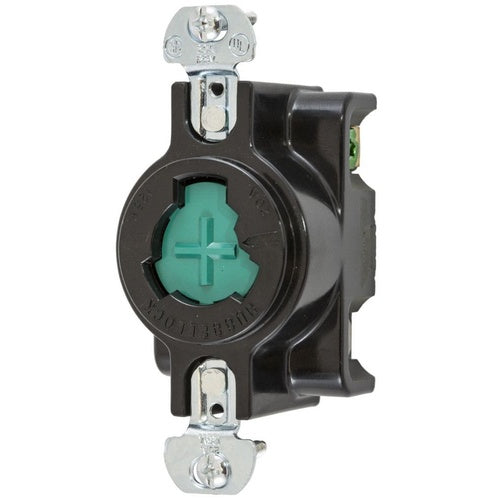

Hubbell HBL23030 Locking Receptacle 2P3W20A125V

Overview

Hubbell HBL23030 Locking Receptacle 2P3W20A125V

Product Specifications

• UPC: 78358501754
• Color: Black
• Face Outer Diameter: 1.38 Inch
• Approval: UL, CSA
• Additional Information: Overall Dimension 3.28 Inch Length x 1.62 Inch Width x 1.65 Inch Height; Wattage 2500 Watt; Enclosure IP30; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL23030
• Brand Name: Hubbellock[R]
• Type: Single
• Rating: 125 Volt 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Phenolic
• Catalog Description: HUBBELLOCK INDUSTRIAL FLUSH RECEPTACLE, 20A 125V, 2-POLE 3-WIRE GROUNDING, NON-NEMA PHENOLIC, BACK WIRED, SCREW TERMINAL
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Phenolic Material; Black Color; 3 Wire(S); UL, CSA Approval; Grounding; 2 Pole(S); 1.38 Inch Face Outer Diameter; 125 Volt 20 Amp Rating; HUBBELLOCK[R], TWIST-LOCK[R] Brand; Overall Dimension 3.28 Inch Length X 1.62 Inch Width X 1.65 Inch Height; Wattage 2500 Watt; Enclosure IP30; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Power Interrupting Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585017549
• SKU Name: hubw hbl23030
