Hubbell HBL23032B Non-Metallic Connector 2P3W20A125V

Overview

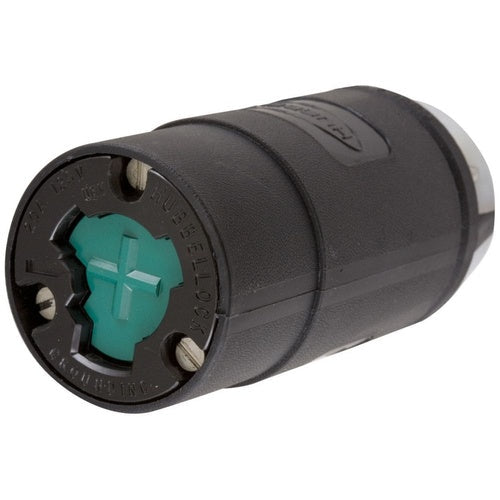

Hubbell HBL23032B Non-Metallic Connector 2P3W20A125V

Product Specifications

• UPC: 78358501755
• Cord Size: 0.32 to 0.66 Inch
• Material: Nylon
• Approval: UL 498, CSA C22.2
• Additional Information: Overall Dimension 3.56 Inch Length x 1.63 Inch Width x 1.72 Inch Height; Contact Material Bronze; Enclosure Rating IP30; Temperature Rating -40 to 75 Deg C; Applicable Standard UL 94-HB
• Catalog Number: HBL23032B
• Brand Name: Wiring Device-Kellems
• Configuration: Non-NEMA Locking
• Connector Rating: 125 Volt 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Color: Black/White
• Catalog Description: HUBBELLOCK INDUSTRIAL FEMALE CONNECTOR BODY, 20A 125V, 2-POLE 3-WIRE GROUNDING HOUSING, THERMOSET INTERIOR, NON-NEMA, SCREW TERMINAL
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black/White Color; Non-NEMA Locking Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; Grounding; 2 Pole(S); 0.32 to 0.66 Inch Cord Size; 125 Volt 20 Amp Connector Rating; HUBBELLOCK[R], TWIST-LOCK[R] Brand; Overall Dimension 3.56 Inch Length X 1.63 Inch Width X 1.72 Inch Height; Contact Material Bronze; Enclosure Rating IP30; Temperature Rating -40 to 75 Deg C; Applicable Standard UL 94-HB
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Power Interrupting Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585017556
• SKU Name: hubw hbl23032b

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
