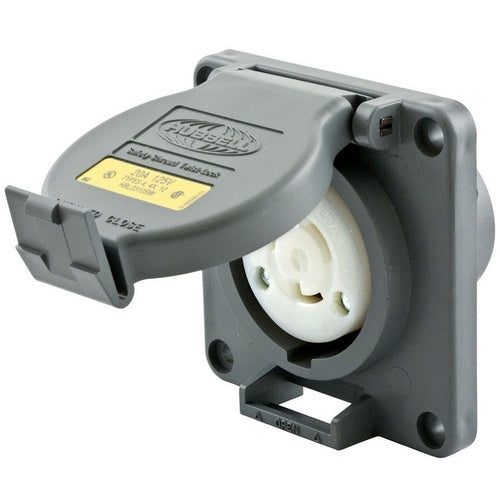

Hubbell HBL2310SW Watertight Safety-Shroud Receptacle, 20A 125V, L5-20R,Gray

Overview

Hubbell HBL2310SW Watertight Safety-Shroud Receptacle, 20A 125V, L5-20R,Gray

Product Specifications

• UPC: 78358523100
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Thermoplastic
• Color: Gray
• Wiring: Back
• Mounting: Screw Mount
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
• Additional Information: Wire Size 18 to 16 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial
• Catalog Number: HBL2310SW
• Brand Name: Gray Valox[R], Watertight Safety-Shroud[R], Twist-Lock[R]
• Type: Single
• Constructional Feature: Moisture Resistant
• Configuration: L5-20R
• Voltage Rating: 125 Volt AC 1-Phase
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, WATERTIGHT SAFETY-SHROUD, RECEPTACLE, 20A 125V AC, 2-POLE 3-WIRE GROUNDING, NEMA L5-20R, SCREW TERMINAL, PBT HOUSING AND FLANGE, GRAY.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Thermoplastic Material; Gray Color; L5-20R Configuration; 3 Wire(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 125 Volt AC 1-Phase Voltage Rating; Screw Mount Mounting; 20 Amp Current Rating; Grounding; 2 Pole(S); Moisture Resistant; Back Wiring; TWIST-LOCK[R], SAFETY-SHROUD[R] Brand; Wire Size 18 to 16 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585231006
• SKU Name: hubw hbl2310sw

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
