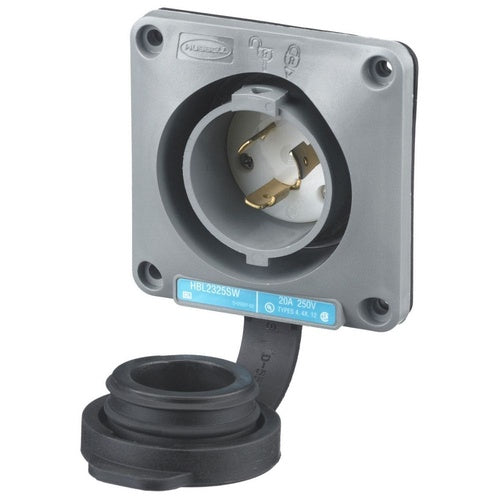

Hubbell HBL2325SW Locking Watertight Safety-Shroud Flanged Inlet, 20A 250V, L6-20P

Overview

Hubbell HBL2325SW Locking Watertight Safety-Shroud Flanged Inlet, 20A 250V, L6-20P

Product Specifications

• UPC: 78358523114
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Thermoplastic Polyester
• Color: Gray
• Approval: UL 94/498, CSA C22.2
• Additional Information: Blade Material Brass; Enclosure NEMA 4/4X/12, IP66; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL2325SW
• Brand Name: Twist-Lock[R], Safety-Shroud[R]
• Type: Polarized
• Constructional Feature: Impact Resistant, Watertight
• Configuration: L6-20P
• Voltage Rating: 250 VAC
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Catalog Description: WATERTIGHT SAFETY-SHROUD, LOCKING DEVICES, TWIST-LOCK, FLANGED INLET, 20A 250V AC, 2-POLE 3-WIRE GROUNDING, NEMA L6-20P, SCREW TERMINAL, GRAY.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Thermoplastic Polyester Material; Gray Color; L6-20P Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 250 VAC Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant, Watertight; TWIST-LOCK[R], SAFETY-SHROUD[R], Gray VALOX[R] Brand; Blade Material Brass; Enclosure NEMA 4/4X/12, IP66; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585231143
• SKU Name: hubw hbl2325sw

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
