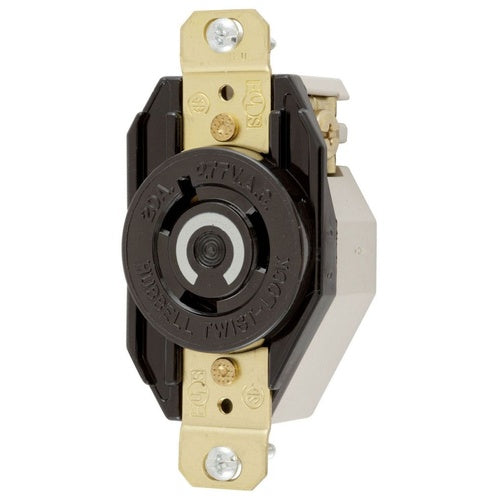

Hubbell HBL2330 Locking Receptacle-Nema L7-20R

Overview

Hubbell HBL2330 Locking Receptacle-Nema L7-20R

Product Specifications

• UPC: 78358523566
• Number Of Wires: 3
• Ground Type: Grounding
• Face Outer Diameter: 1.56 Inch
• Material: Nylon (Face), Glass Reinforced Thermoplastic Polyester (Base)
• Color: Black
• Wiring: Back, Side
• Mounting: Flush
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL2330
• Brand Name: Wiring Device-Kellems
• Type: Single
• Constructional Feature: Corrosion Resistant
• Configuration: L7-20R
• Voltage Rating: 277 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, SINGLE FLUSH RECEPTACLE, 20A 277V AC, 2-POLE 3-WIRE GROUNDING, NEMA L7-20R, SCREW TERMINAL, NYLON FACE, BACK AND SIDE WIRE, BLACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Nylon (Face), Glass Reinforced Thermoplastic Polyester (Base) Material; Black Color; L7-20R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 277 Volt AC Voltage Rating; Flush Mounting; 20 Amp Current Rating; Grounding; 2 Pole(S); Corrosion Resistant; Back, Side Wiring; 1.56 Inch Face Outer Diameter; TWIST-LOCK[R] Brand; Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585235660
• SKU Name: hubw hbl2330
