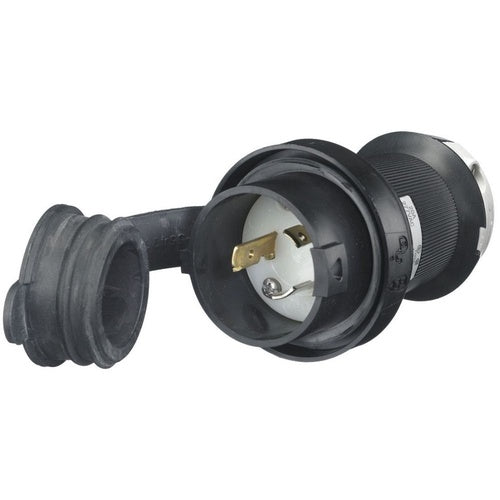

Hubbell HBL2331SW Locking Watertight Safety-Shroud Plug, 20A 277V, L7-20P

Overview

Hubbell HBL2331SW Locking Watertight Safety-Shroud Plug, 20A 277V, L7-20P

Product Specifications

• UPC: 78358523120
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Valox Body/Clamp, Thermoplastic Polyester Interior
• Color: Black
• Cord Size: 0.36 to 0.93 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure NEMA 4/4X/12, IP66; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL2331SW
• Brand Name: Twist-Lock[R], Safety-Shroud[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Watertight, Impact Resistant
• Configuration: L7-20P
• Voltage Rating: 277 VAC
• Current Rating: 20 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, WATERTIGHT SAFETY-SHROUD, MALE PLUG, 20A 277V AC, 2-POLE 3-WIRE GROUNDING, NEMA L7-20P, SCREW TERMINAL, BLACK PBT HOUSING, WHITE PBT CLAMPS.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Valox Body/Clamp, Thermoplastic Polyester Interior Material; Black Color; L7-20P Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 277 VAC Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); Watertight, Impact Resistant; 0.36 to 0.93 Inch Cord Size; TWIST-LOCK[R], SAFETY-SHROUD[R] Brand; Enclosure NEMA 4/4X/12, IP66; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585231204
• SKU Name: hubw hbl2331sw
