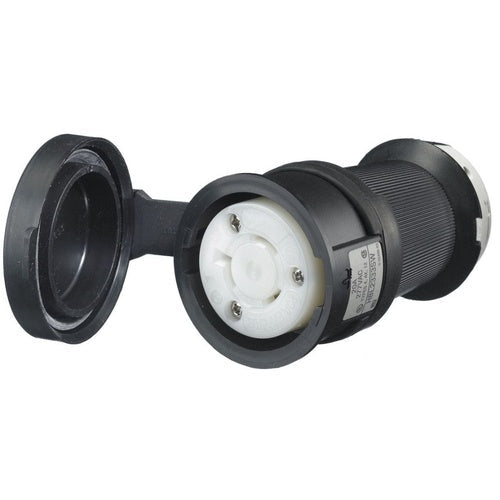

Hubbell HBL2333SW Locking Watertight Safety-Shroud Connector, 20A 277V, L7-20R

Overview

Hubbell HBL2333SW Locking Watertight Safety-Shroud Connector, 20A 277V, L7-20R

Product Specifications

• UPC: 78358523122
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Valox
• Color: Black/White
• Cord Size: 0.36 to 0.93 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating NEMA 4/4X/12, IP66; Temperature Rating -40 to 75 Deg C; Application Industrial
• Catalog Number: HBL2333SW
• Brand Name: Twist-Lock[R], Safety-Shroud[R]
• Model: HBL
• Constructional Feature: Water Tight, Impact Resistant
• Configuration: L7-20R
• Voltage Rating: 277 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: TWIST-LOCK WATERTIGHT SAFETY-SHROUD, FEMALE CONNECTOR BODY, 20A 277V AC, 2-POLE 3-WIRE GROUNDING, NEMA L7-20R, SCREW TERMINAL PBT HOUSING PBT CLAMPS
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Valox Material; Black/White Color; L7-20R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 277 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Water Tight, Impact Resistant; 0.36 to 0.93 Inch Cord Size; TWIST-LOCK[R], SAFETY-SHROUD[R] Brand; Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating NEMA 4/4X/12, IP66; Temperature Rating -40 to 75 Deg C; Application Industrial; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585231228
• SKU Name: hubw hbl2333sw
