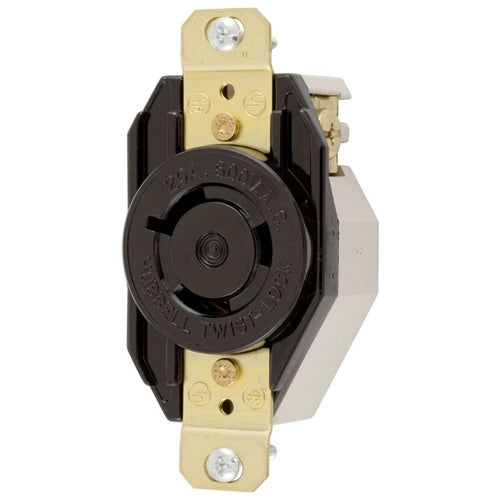

Hubbell HBL2350 Locking Receptacle-Nema L9-20R

Overview

Hubbell HBL2350 Locking Receptacle-Nema L9-20R

Product Specifications

• UPC: 78358523572
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Face Outer Diameter: 1.563 Inch
• Material: Nylon Face
• Color: Black
• Wiring: Back, Side
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL2350
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Single Locking
• Constructional Feature: Corrosion Resistant
• Configuration: L9-20R
• Voltage Rating: 600 VAC
• Current Rating: 20 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, SINGLE FLUSH RECEPTACLE, 20A 600V AC, 2-POLE 3-WIRE GROUNDING, NEMA L9-20R, SCREW TERMINAL, NYLON FACE, BACK AND SIDE WIRE, BLACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Face Material; Black Color; L9-20R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 600 VAC Voltage Rating; Flush Mount Mounting; 20 Ampere Current Rating; Grounding; 2 Pole(S); Corrosion Resistant; Back, Side Wiring; 1.563 Inch Face Outer Diameter; TWIST-LOCK[R] Brand; Contact Material Brass; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585235721
• SKU Name: hubw hbl2350

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
