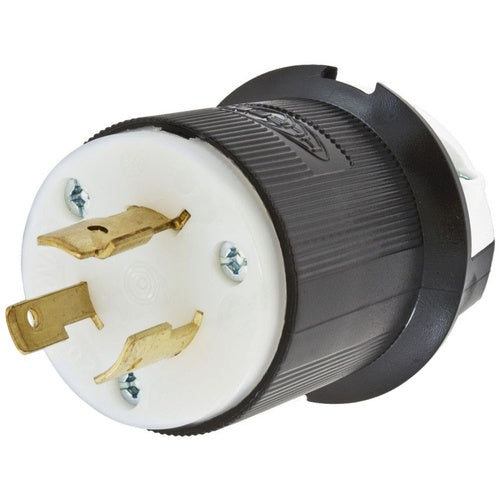

Hubbell HBL2351 Grounding Locking Plug-Nm L9-20P

Overview

Hubbell HBL2351 Grounding Locking Plug-Nm L9-20P

Product Specifications

• UPC: 78358503802
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.36 to 0.93 Inch
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
• Additional Information: Wire Size 16 to 8 AWG; Blade Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial
• Catalog Number: HBL2351
• Brand Name: Twist-Lock[R], Add-A-Shroud[R]
• Model: HBL
• Constructional Feature: Moisture Resistant, Dust Shield
• Configuration: L9-20P
• Voltage Rating: 600 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, MALE INSULGRIP PLUG, 20A 600V AC, 2-POLE3-WIRE GROUNDING, NEMA L9-20P, SCREW TERMINAL, BLACK AND WHITE NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black/White Color; L9-20P Configuration; 3 Wire(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 600 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Moisture Resistant, Dust Shield; 0.36 to 0.93 Inch Cord Size; Twist-Lock [R], Insulgrip [R] Brand; Wire Size 16 to 8 AWG; Blade Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585038025
• SKU Name: hubw hbl2351
