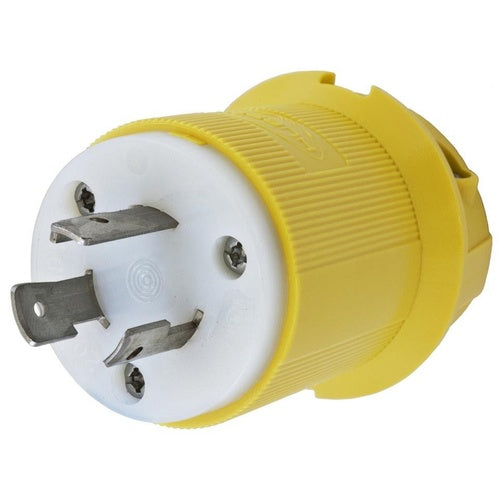

Hubbell HBL23CM21 Locking Plug-Nema L6-20P

Overview

Hubbell HBL23CM21 Locking Plug-Nema L6-20P

Product Specifications

• UPC: 78358503811
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Yellow
• Cord Size: 0.36 to 0.93 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Blade Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL23CM21
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Impact Resistant, Chemical Resistant
• Configuration: L6-20P
• Voltage Rating: 250 VAC
• Current Rating: 20 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, CORROSION RESISTANT INSULGRIP PLUG, 20A, 250V AC, 2 POLE, 3 WIRE GROUNDING, YELLOW
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Yellow Color; L6-20P Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 250 VAC Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant, Chemical Resistant; 0.36 to 0.93 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Blade Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585038117
• SKU Name: hubw hbl23cm21

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
