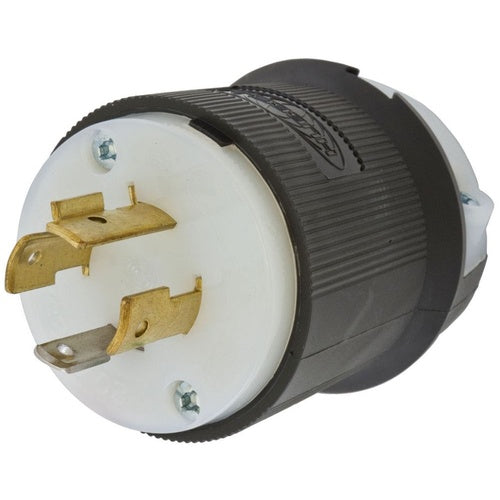

Hubbell HBL2411 Grounding Locking Plug-N L14-20P

Overview

Hubbell HBL2411 Grounding Locking Plug-N L14-20P

Product Specifications

• UPC: 78358503813
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL2411
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Chemical Resistant
• Configuration: L14-20P
• Voltage Rating: 125/250 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, MALE INSULGRIP PLUG, 20A 125/250V AC, 3- POLE 4-WIRE GROUNDING, NEMA L14-20P, SCREW TERMINAL, BLACK AND WHITE NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; L14-20P Configuration; 4 Wire(S); UL 498, CSA C22.2 Approval; 125/250 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 3 Pole(S); Chemical Resistant; 0.35 to 1.15 Inch Cord Size; Twist-Lock [R], Insulgrip [R] Brand; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585038131
• SKU Name: hubw hbl2411
