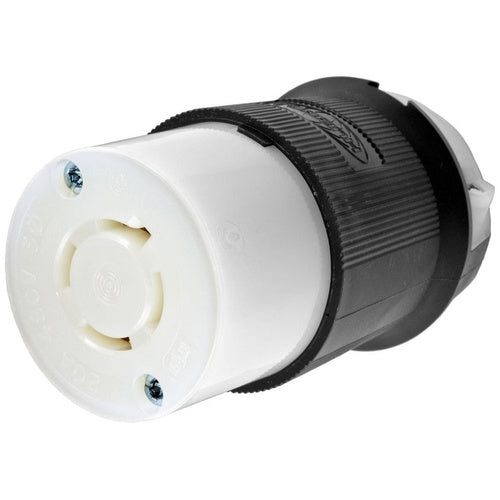

Hubbell HBL2433 Grounding Locking Connector-N L16-20R

Overview

Hubbell HBL2433 Grounding Locking Connector-N L16-20R

Product Specifications

• UPC: 78358503829
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL2433
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Chemical Resistant
• Configuration: L16-20R
• Voltage Rating: 480 Volt AC 3-Phase
• Current Rating: 20 Amp
• Number Of Poles: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FEMALE INSULGRIP CONNECTOR BODY, 20A 3-PHASE 480V AC, 3-POLE 4-WIRE GROUNDING, NEMA L16-20R, SCREW TERMINAL, BLACK AND WHITE NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon (Housing), Clear Polycarbonate (Terminal Retainer), Brass (Contact/Terminal Screw), Nickel Plated Cold Rolled Steel (Terminal Clamp), Nickel Plated Steel (Assembly Screw) Material; Black/White Color; L16-20R Configuration; 4 Wire(S); UL, CSA Approval; 480 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 3 Pole(S); Moisture Resistance; 0.35 to 1.15 Inch Cord Size; Twist-Lock [R], Insulgrip [R] Brand; Dimension 4.4 Inch Length X 2.75 Inch Width X 2.75 Inch Height; Wire Size 16 to 8 AWG Stranded Copper; Terminal Type #10-32 TPI (Phillips/Slotted/Robertson) Screw; Power Rating 5 HP; Dielectric Voltage 2000 Volt; Number of Phases 3; Enclosure Type IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585038292
• SKU Name: hubw hbl2433
