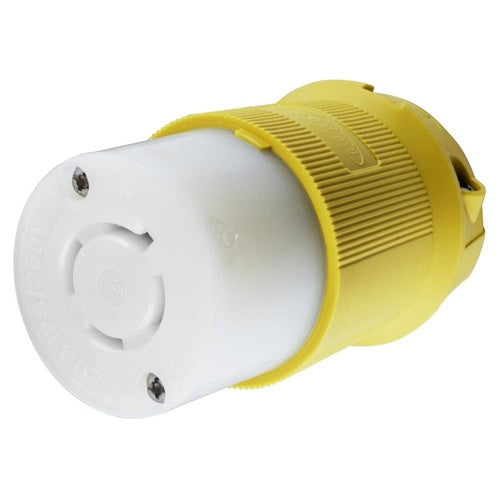

Hubbell HBL24CM13 Locking Connector-Nema L14-20R

Overview

Hubbell HBL24CM13 Locking Connector-Nema L14-20R

Product Specifications

• UPC: 78358503848
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Nylon
• Color: Yellow
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL24CM13
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Corrosion Resistant
• Configuration: L14-20R
• Voltage Rating: 125/250 V
• Current Rating: 20 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, MARINE GRADE, FEMALE INSULGRIP CONNECTOR BODY, 20A, 125/250V AC, 3-POLE 4-WIRE GROUNDING, NEMA L14-20R, SCREW TERMINAL, YELLOW NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Yellow Color; L14-20R Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 125/250 V Voltage Rating; 20 Ampere Current Rating; Grounding; 3 Pole(S); Corrosion Resistant; 0.35 to 1.15 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585038483
• SKU Name: hubw hbl24cm13

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
