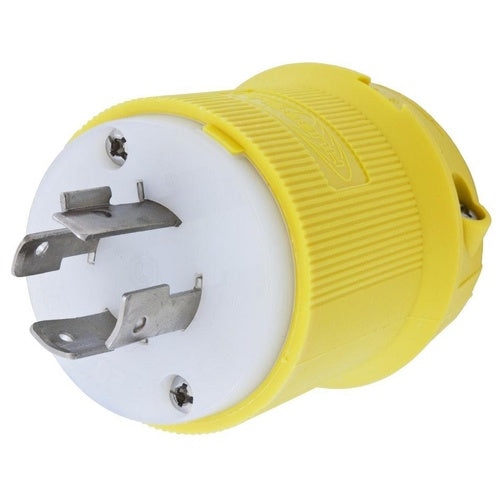

Hubbell HBL24CM21 Locking Plug-Nema L15-20P

Overview

Hubbell HBL24CM21 Locking Plug-Nema L15-20P

Product Specifications

• UPC: 78358503849
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Nylon
• Color: Yellow
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Blade Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL24CM21
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Impact Resistant, Chemical Resistant
• Configuration: L15-20P
• Voltage Rating: 250 VAC 3-Phase
• Current Rating: 20 Ampere
• Catalog Description: TWIST-LOCK MARINE GRADE MALE INSULGRIP PLUG, 20A 3-PHASE DELTA 250V AC, 3-POLE 4-WIRE GROUNDING, NEMA L15-20P, SCREW TERMINAL, CORROSION RESISTANT
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Yellow Color; L15-20P Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 250 VAC 3-Phase Voltage Rating; 20 Ampere Current Rating; Grounding; 3 Pole(S); Impact Resistant, Chemical Resistant; 0.35 to 1.15 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Blade Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585038490
• SKU Name: hubw hbl24cm21

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
