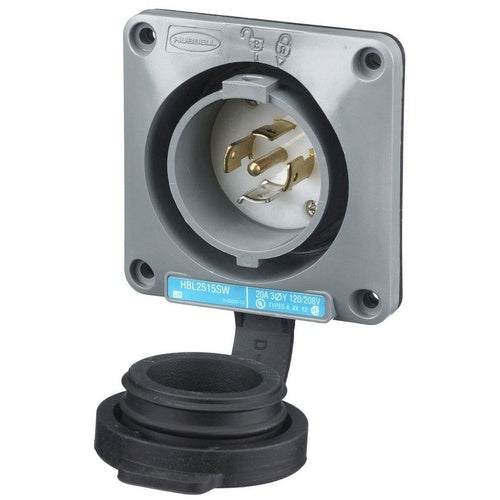

Hubbell HBL2515SW Locking Watertight Safety-Shroud Inlet,20A120/208V,L21-20P

Overview

Hubbell HBL2515SW Locking Watertight Safety-Shroud Inlet,20A120/208V,L21-20P

Product Specifications

• UPC: 78358523156
• Number Of Wires: 5
• Ground Type: Grounding
• Material: Thermoplastic Polyester
• Color: Gray
• Approval: UL 94/498, CSA C22.2
• Additional Information: Blade Material Brass; Enclosure NEMA 4/4X/12, IP66; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL2515SW
• Brand Name: Twist-Lock[R], Safety-Shroud[R]
• Type: Polarized
• Constructional Feature: Impact Resistant, Watertight
• Configuration: L21-20P
• Voltage Rating: 120/208 VAC Star 3-Phase
• Current Rating: 20 Ampere
• Number Of Poles: 4
• Catalog Description: WATERTIGHT SAFETY-SHROUD, LOCKING DEVICES, TWIST-LOCK, FLANGED INLET, 20A 3-PHASE WYE 120/208V AC, 4-POLE 5-WIRE GROUNDING, NEMA L21-20P, SCREW TERMINAL, GRAY.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Thermoplastic Polyester Material; Gray Color; L21-20P Configuration; 5 Wire(S); UL 94/498, CSA C22.2 Approval; 120/208 VAC Star 3-Phase Voltage Rating; 20 Ampere Current Rating; Grounding; 4 Pole(S); Impact Resistant, Watertight; TWIST-LOCK[R], SAFETY-SHROUD[R], Gray VALOX[R] Brand; Blade Material Brass; Enclosure NEMA 4/4X/12, IP66; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585231563
• SKU Name: hubw hbl2515sw
