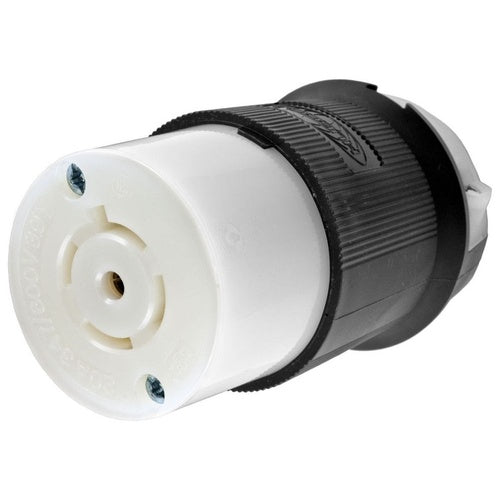

Hubbell HBL2533 Grounding Locking Connector-N L23-20R

Overview

Hubbell HBL2533 Grounding Locking Connector-N L23-20R

Product Specifications

• UPC: 78358503867
• Number Of Wires: 5
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
• Additional Information: Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial
• Catalog Number: HBL2533
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Model: HBL
• Constructional Feature: Chemical Resistant
• Configuration: L23-20R
• Voltage Rating: 347/600 Volt AC Star 3-Phase
• Current Rating: 20 Amp
• Number Of Poles: 4
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FEMALE INSULGRIP CONNECTOR BODY, 20A 3-PHASE WYE 347/600V AC, 4-POLE 4-WIRE NON-GROUNDING, NEMA L23-20R, SCREW TERMINAL, BLACK AND WHITE NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black/White Color; L23-20R Configuration; 5 Wire(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 347/600 Volt AC Star 3-Phase Voltage Rating; 20 Amp Current Rating; Grounding; 4 Pole(S); Chemical Resistant; 0.35 to 1.15 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585038674
• SKU Name: hubw hbl2533
