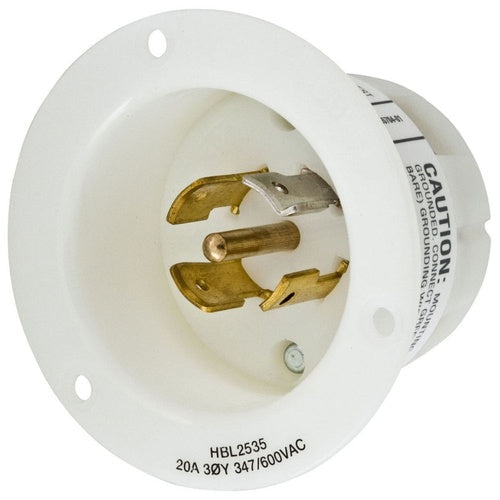

Hubbell HBL2535 Locking Flanged Inlet-Nema L23-20P

Overview

Hubbell HBL2535 Locking Flanged Inlet-Nema L23-20P

Product Specifications

• UPC: 78358503869
• Ground Type: Grounding
• Material: Nylon
• Color: White
• Approval: UL 94/498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG; Enclosure Rating IP20; Wiring Back; Blade Material Brass; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL2535
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Constructional Feature: Moisture Resistant
• Configuration: L23-20P
• Voltage Rating: 347/600 Volt AC Star 3-Phase
• Current Rating: 20 Amp
• Number Of Poles: 4
• Number Of Wires: 5
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, INSULGRIP FLANGED INLET, 20A 3-PHASE WYE 347/600V AC, 4-POLE 5-WIRE GROUNDING, NEMA L23-20P, SCREW TERMINAL, NYLON CASING, BACK WIRED, WHITE.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; White Color; L23-20P Configuration; 5 Wire(S); UL 94/498, CSA C22.2 Approval; 347/600 Volt AC Star 3-Phase Voltage Rating; 20 Amp Current Rating; Grounding; 4 Pole(S); Moisture Resistant; TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 16 to 8 AWG; Enclosure Rating IP20; Wiring Back; Blade Material Brass; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585038698
• SKU Name: hubw hbl2535
