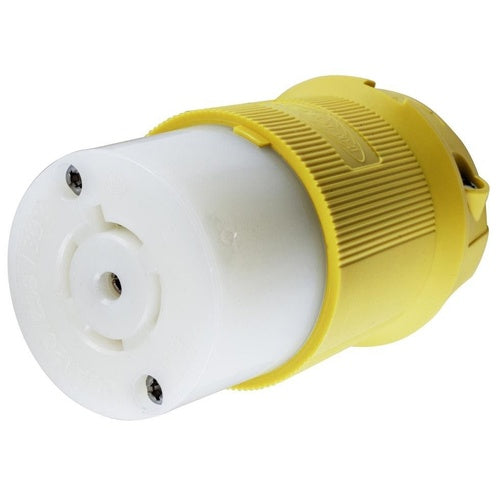

Hubbell HBL25CM13 Locking Connector-Nema L21-20R

Overview

Hubbell HBL25CM13 Locking Connector-Nema L21-20R

Product Specifications

• UPC: 78358503872
• Number Of Poles: 4
• Number Of Wires: 5
• Ground Type: Grounding
• Material: Nylon
• Color: Yellow
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL25CM13
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Corrosion Resistant
• Configuration: L21-20R
• Voltage Rating: 120/208 VAC Star 3-Phase
• Current Rating: 20 Ampere
• Catalog Description: TWIST-LOCK CORROSION RESISTANT INSULGRIP CONNECTOR, 20A, 3 PHASE Y 120/208V AC, 4-POLE, 5 WIRE GROUNDING, NEMA L21-20R NYLON
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Yellow Color; L21-20R Configuration; 5 Wire(S); UL 94/498, CSA C22.2 Approval; 120/208 VAC Star 3-Phase Voltage Rating; 20 Ampere Current Rating; Grounding; 4 Pole(S); Corrosion Resistant; 0.35 to 1.15 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585038728
• SKU Name: hubw hbl25cm13
