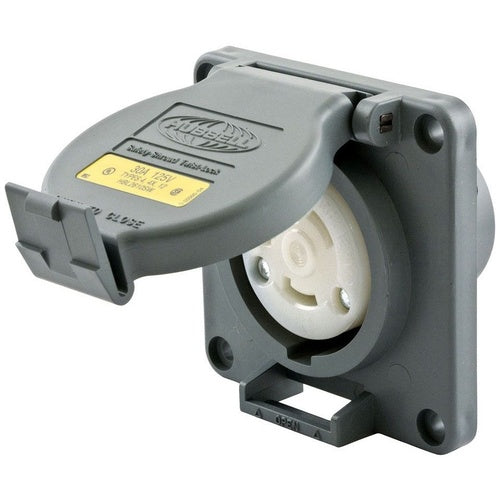

Hubbell HBL2610SW Locking Watertight Safety-Shroud Receptacle, 30A 125V, L5-30R, Gray

Overview

Hubbell HBL2610SW Locking Watertight Safety-Shroud Receptacle, 30A 125V, L5-30R, Gray

Product Specifications

• UPC: 78358523158
• Ground Type: Grounding
• Cover Type: Water Tight
• Material: Valox PBT
• Color: Gray
• Approval: UL 94/498, CSA C22.2
• Additional Information: Power Rating 3750 Watt; Wire Size 16 to 8 AWG; Overall Dimension 3.75 Inch Length x 3.75 Inch Width x 2.69 Inch Height; Enclosure Type NEMA 4/4X/12, IP66; Operating Temperature Rating -40 to 75 Deg C; Application Heavy Duty Industrial
• Catalog Number: HBL2610SW
• Brand Name: Twist-Lock[R], Safety-Shroud[R]
• Type: Single
• Configuration: L5-30R
• Voltage Rating: 125 Volt AC
• Current Rating: 30 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, WATERTIGHT SAFETY-SHROUD, RECEPTACLE, 30A 125V AC, 2-POLE 3-WIRE GROUNDING, NEMA L5-30R, SCREW TERMINAL, PBT HOUSING AND FLANGE, GRAY.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Valox Pbt Material; Gray Color; L5-30R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 30 Amp Current Rating; Water Tight Cover Type; Grounding; 2 Pole(S); TWIST-LOCK[R], SAFETY-SHROUD[R], Gray VALOX[R] Brand; Power Rating 3750 Watt; Wire Size 16 to 8 AWG; Overall Dimension 3.75 Inch Length X 3.75 Inch Width X 2.69 Inch Height; Enclosure Type NEMA 4/4X/12, IP66; Operating Temperature Rating -40 to 75 Deg C; Application Heavy Duty Industrial
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Receptacle with Plate
• Unspsc: 39121406
• UPC 12 Digit: 783585231587
• SKU Name: hubw hbl2610sw
