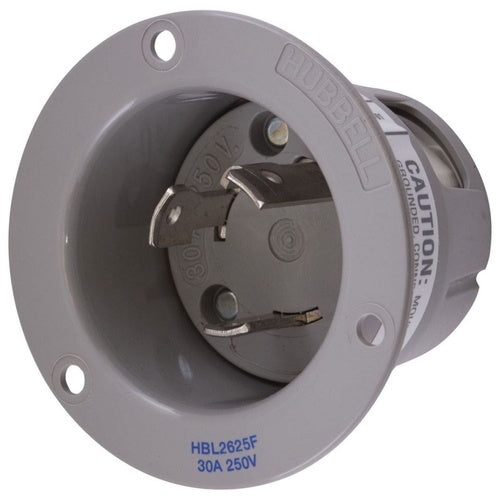

Hubbell HBL2625F Flanged Inlet-Nm L6-30P

Overview

Hubbell HBL2625F Flanged Inlet-Nm L6-30P

Product Specifications

• UPC: 78358503891
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Gray
• Approval: UL 94/498, CSA C22.2
• Additional Information: Blade Material Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL2625F
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Type: Polarized
• Constructional Feature: Heat Resistant
• Configuration: L6-30P
• Voltage Rating: 250 VAC
• Current Rating: 30 Ampere
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INSULGRIP FLANGED INLET, 30A, 250V AC, 2 POLE, 3 WIRE GROUNDING, NEMA L6-30P, HEAT STABILIZED, GRAY NYLON
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Gray Color; L6-30P Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 250 VAC Voltage Rating; 30 Ampere Current Rating; Grounding; 2 Pole(S); Heat Resistant; TWIST-LOCK[R], INSULGRIP[R] Brand; Blade Material Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585038919
• SKU Name: hubw hbl2625f

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
