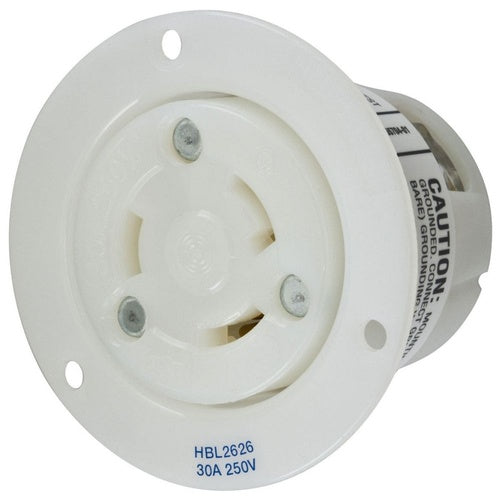

Hubbell HBL2626 Locking Flanged Outlet-Nema L6-30R

Overview

Hubbell HBL2626 Locking Flanged Outlet-Nema L6-30R

Product Specifications

• UPC: 78358503893
• Ground Type: Grounding
• Material: Nylon (Housing)
• Color: White
• Approval: UL, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL2626
• Brand Name: Wiring Device-Kellems
• Type: Flanged
• Configuration: L6-30R
• Voltage Rating: 250 Volt AC
• Current Rating: 30 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLANGED RECEPTACLE, 30A 250V, 2-POLE 3-WIRE GROUNDING, L6-30R, SCREW TERMINAL, WHITE.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Flanged Type; Nylon (Housing) Material; White Color; L6-30R Configuration; 3 Wire(S); UL, CSA C22.2 Approval; 250 Volt AC Voltage Rating; 30 Amp Current Rating; Grounding; 2 Pole(S); TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585038933
• SKU Name: hubw hbl2626
