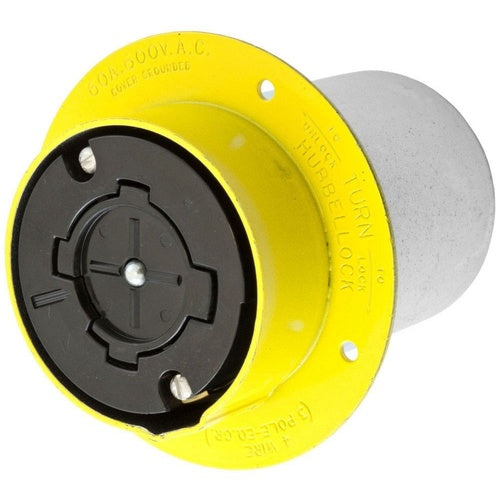

Hubbell HBL26421 Flanged Outlet 3P4W60A600V

Overview

Hubbell HBL26421 Flanged Outlet 3P4W60A600V

Product Specifications

• UPC: 78358501760
• Color: Yellow
• Face Outer Diameter: 2.86 Inch
• Approval: UL, CSA
• Additional Information: Overall Dimension 4.12 Inch Length x 2.88 Inch Width x 4.53 Inch Height; Wattage 36000 Watt; Enclosure IP44; Operating Temperature -40 to 75 Deg C; Application Heavy Duty Industrial
• Catalog Number: HBL26421
• Brand Name: Hubbellock[R]
• Type: Single
• Rating: 600 Volt AC 60 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Phenolic (Interior), Steel (Housing)
• Catalog Description: HUBBELLOCK INDUSTRIAL FLANGED RECEPTACLE, 60A 600V, 3-POLE 4-WIRE GROUNDING PHENOLIC INTERIOR WITH STEEL HOUSING AND FLANGE, NON NEMA, SCREW TERMINAL
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Phenolic (Interior), Steel (Housing) Material; Yellow Color; 4 Wire(S); UL, CSA Approval; Grounding; 3 Pole(S); 2.86 Inch Face Outer Diameter; 600 Volt AC 60 Amp Rating; HUBBELLOCK[R], TWIST-LOCK[R] Brand; Overall Dimension 4.12 Inch Length X 2.88 Inch Width X 4.53 Inch Height; Wattage 36000 Watt; Enclosure IP44; Operating Temperature -40 to 75 Deg C; Application Heavy Duty Industrial
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Power Interrupting Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585017600
• SKU Name: hubw hbl26421
