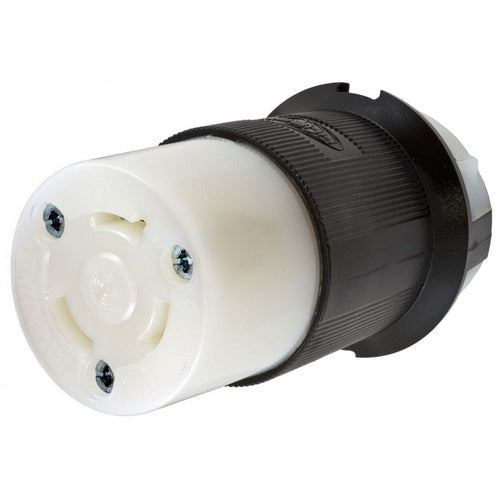

Hubbell HBL2643 Grounding Locking Connector-Nm L8-30R

Overview

Hubbell HBL2643 Grounding Locking Connector-Nm L8-30R

Product Specifications

• UPC: 78358503901
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.325 to 0.93 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL2643
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Chemical Resistant
• Configuration: L8-30R
• Voltage Rating: 480 Volt AC
• Current Rating: 30 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FEMALE CONNECTOR BODY, 30A 480V AC, 2-POLE 3-WIRE GROUNDING, L8-30R, SCREW TERMINAL, BLACK AND WHITE.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; L8-30R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 480 Volt AC Voltage Rating; 30 Amp Current Rating; Grounding; 2 Pole(S); Chemical Resistant; 0.325 to 0.93 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585039015
• SKU Name: hubw hbl2643

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
