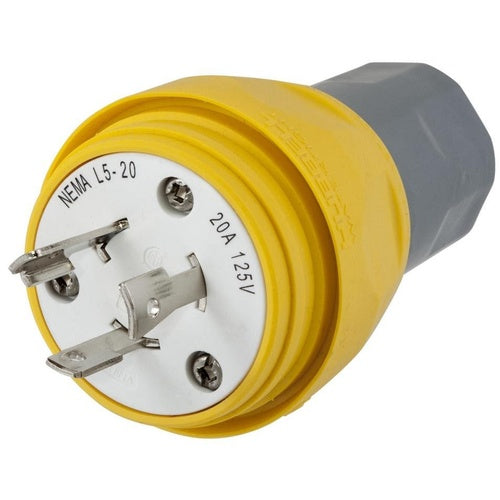

Hubbell HBL26W47 Plug Nema L5-20P, 20A 125V, Yellow

Overview

Hubbell HBL26W47 Plug Nema L5-20P, 20A 125V, Yellow

Product Specifications

• UPC: 78358513138
• Number Of Wires: 3
• Material: Thermoplastic Elastomer
• Color: Yellow
• Cord Size: 0.375 to 0.875 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Enclosure Rating 4/4X/12/6/6P; Blade Material Brass; Temperature Rating -40 to 60 Deg C; Applicable Standard WD-1/6, ANSI
• Catalog Number: HBL26W47
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Corrosion Resistant, Water Tight
• Configuration: L5-20P
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: WATERTIGHT DEVICES, TWIST-LOCK PLUG, 20A, 125V AC, 2 POLE, 3 WIRE, THERMOPLASTIC ELASTOMER, NEMA L5-20P, YELLOW
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Thermoplastic Elastomer Material; Yellow Color; L5-20P Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; 2 Pole(S); Corrosion Resistant, Water Tight; 0.375 to 0.875 Inch Cord Size; TWIST-LOCK[R] Brand; Enclosure Rating 4/4X/12/6/6P; Blade Material Brass; Temperature Rating -40 to 60 Deg C; Applicable Standard Wd-1/6, ANSI
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585131382
• SKU Name: hubw hbl26w47

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
