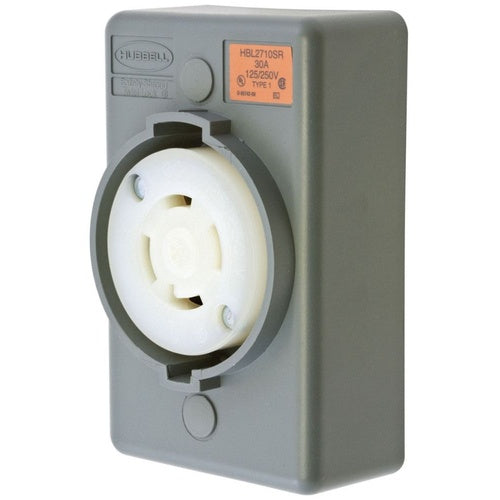

Hubbell HBL2710SR Locking Safety-Shroud Receptacle, L14-30R, Surface Mount, Gray

Overview

Hubbell HBL2710SR Locking Safety-Shroud Receptacle, L14-30R, Surface Mount, Gray

Product Specifications

• UPC: 78358523466
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Valox
• Color: Gray
• Wiring: Back
• Mounting: Surface Mount
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Number of Gangs 1; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL2710SR
• Brand Name: Twist-Lock[R], Safety-Shroud[R]
• Model: HBL
• Type: Single Locking
• Constructional Feature: Impact Resistant, Corrosion Resistant
• Configuration: L14-30R
• Voltage Rating: 125/250 V
• Current Rating: 30 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, SAFETY-SHROUD, SURFACE MOUNT RECEPTACLE, ONE GANG, 30A 125/250V AC, 3-POLE 4-WIRE GROUNDING, NEMA L14-30R, SCREW TERMINAL, GRAY.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Valox Material; Gray Color; L14-30R Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 125/250 V Voltage Rating; Surface Mount Mounting; 30 Ampere Current Rating; Grounding; 3 Pole(S); Impact Resistant, Corrosion Resistant; Back Wiring; TWIST-LOCK[R], SAFETY-SHROUD[R] Brand; Contact Material Brass; Number of Gangs 1; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585234663
• SKU Name: hubw hbl2710sr

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
