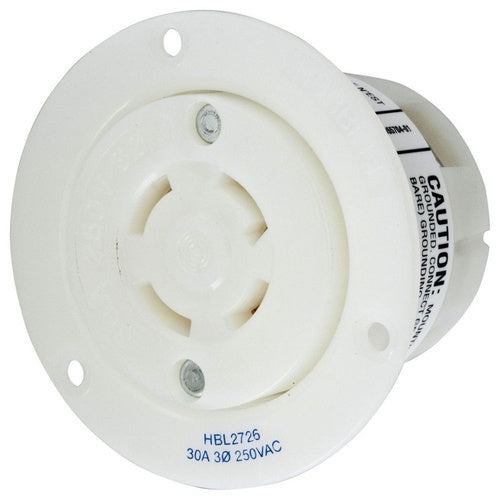

Hubbell HBL2726 Locking Flanged Outlet-Nm L15-30R

Overview

Hubbell HBL2726 Locking Flanged Outlet-Nm L15-30R

Product Specifications

• UPC: 78358503930
• Material: Nylon Casing
• Color: White
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL2726
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Configuration: L15-30R
• Voltage Rating: 250 VAC 3-Phase
• Current Rating: 30 Ampere
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLANGED RECEPTACLE, 30A PHASE DELTA 250V AC, 3-POLE 4-WIRE GROUNDING, L15-30R, SCREW TERMINAL, WHITE
• Category: Receptacles & Surge Protectors
• Full Technical Description: Nylon Casing Material; White Color; L15-30R Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 250 VAC 3-Phase Voltage Rating; 30 Ampere Current Rating; Grounding; 3 Pole(S); TWIST-LOCK[R], INSULGRIP[R] Brand; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585039305
• SKU Name: hubw hbl2726

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
