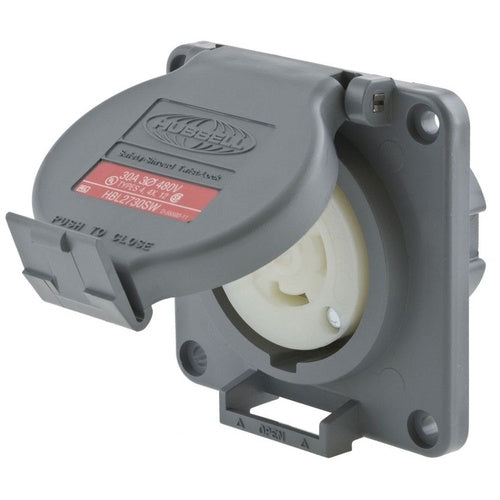

Hubbell HBL2730SW Locking Watertight Safety-Shroud Receptacle, 30A3P 480V, L16-30R

Overview

Hubbell HBL2730SW Locking Watertight Safety-Shroud Receptacle, 30A3P 480V, L16-30R

Product Specifications

• UPC: 78358523190
• Ground Type: Grounding
• Cover Type: Water Tight
• Material: Reinforced Thermoplastic Polyester (Housing)
• Color: Gray
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating 4/4X/12/IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL2730SW
• Brand Name: Wiring Device-Kellems
• Type: Single
• Configuration: L16-30R
• Voltage Rating: 480 Volt AC 3-Phase
• Current Rating: 30 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, WATERTIGHT SAFETY-SHROUD, RECEPTACLE, 30A 3-PHASE DELTA 480V AC, 3-POLE 4-WIRE GROUNDING, NEMA L16-30R, SCREW TERMINAL, PBT HOUSING AND FLANGE, GRAY
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Reinforced Thermoplastic Polyester (Housing) Material; Gray Color; L16-30R Configuration; 4 Wire(S); UL 498, CSA C22.2 Approval; 480 Volt AC 3-Phase Voltage Rating; 30 Amp Current Rating; Water Tight Cover Type; Grounding; 3 Pole(S); TWIST-LOCK[R], SAFETY-SHROUD[R], Gray VALOX[R] Brand; Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating 4/4X/12/IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Receptacle with Plate
• Unspsc: 39121406
• UPC 12 Digit: 783585231907
• SKU Name: hubw hbl2730sw

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
