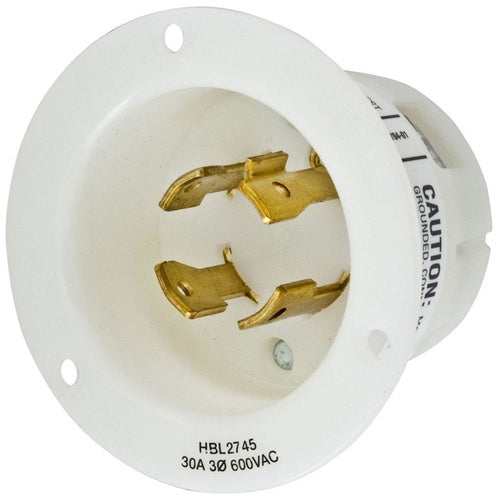

Hubbell HBL2745 Locking Flanged Inlet-Nema L17-30P

Overview

Hubbell HBL2745 Locking Flanged Inlet-Nema L17-30P

Product Specifications

• UPC: 78358503941
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Nylon Casing
• Color: White
• Approval: UL 94/498, CSA C22.2
• Additional Information: Blade Material Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL2745
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Type: Polarized
• Constructional Feature: Impact Resistant
• Configuration: L17-30P
• Voltage Rating: 600 VAC 3-Phase
• Current Rating: 30 Ampere
• Number Of Poles: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLANGED INLET, 30A 3-PHASE DELTA 600V AC, 3-POLE 4-WIRE GROUNDING, L17- 30P, SCREW TERMINAL, WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Casing Material; White Color; L17-30P Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 600 VAC 3-Phase Voltage Rating; 30 Ampere Current Rating; Grounding; 3 Pole(S); Impact Resistant; TWIST-LOCK[R], INSULGRIP[R] Brand; Blade Material Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585039411
• SKU Name: hubw hbl2745
