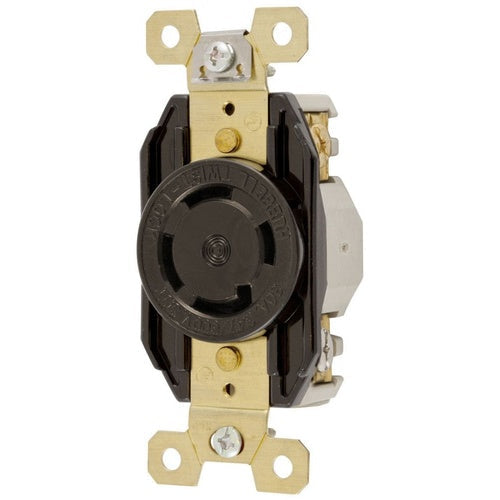

Hubbell HBL2770 Locking Receptacle-Nema L20-30R

Overview

Hubbell HBL2770 Locking Receptacle-Nema L20-30R

Product Specifications

• UPC: 78358523622
• Number Of Poles: 4
• Number Of Wires: 4
• Ground Type: Non-Grounding
• Face Outer Diameter: 1.563 Inch
• Material: Nylon Face
• Color: Black
• Wiring: Back, Side
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL2770
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Single Locking
• Constructional Feature: Corrosion Resistant
• Configuration: L20-30R
• Voltage Rating: 347/600 VAC Star 3-Phase
• Current Rating: 30 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLUSH RECEPTACLE, 30A 3-PHASE WYE 347/600V AC, 4-POLE 4-WIRE NON- GROUNDING, L20-20R, SCREW TERMINAL, BLACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Face Material; Black Color; L20-30R Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 347/600 VAC Star 3-Phase Voltage Rating; Flush Mount Mounting; 30 Ampere Current Rating; Non-Grounding; 4 Pole(S); Corrosion Resistant; Back, Side Wiring; 1.563 Inch Face Outer Diameter; TWIST-LOCK[R] Brand; Contact Material Brass; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585236223
• SKU Name: hubw hbl2770
