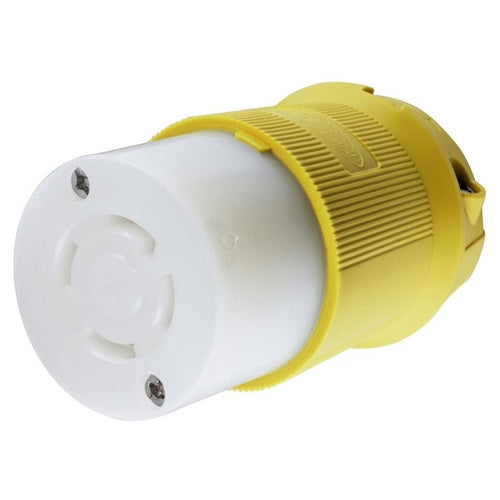

Hubbell HBL27CM33 Locking Connector-Nema L16-30R

Overview

Hubbell HBL27CM33 Locking Connector-Nema L16-30R

Product Specifications

• UPC: 78358503960
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Nylon
• Color: Yellow
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL27CM33
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical/Corrosion Resistant
• Configuration: L16-30R
• Voltage Rating: 480 Volt AC 3-Phase
• Current Rating: 30 Amp
• Number Of Poles: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, MARINE GRADE, FEMALE INSULGRIP CONNECTOR BODY, 30A 3-PHASE DELTA 480V AC, 3-POLE 4-WIRE GROUNDING, NEMA L16-30R, SCREW TERMINAL, YELLOW NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Yellow Color; L16-30R Configuration; 4 Wire(S); UL 498, CSA C22.2 Approval; 480 Volt AC 3-Phase Voltage Rating; 30 Amp Current Rating; Grounding; 3 Pole(S); Impact/Chemical/Corrosion Resistant; 0.35 to 1.15 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585039602
• SKU Name: hubw hbl27cm33
