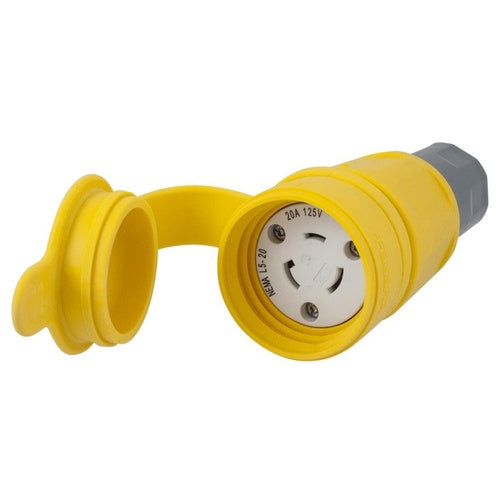

Hubbell HBL27W47 20A/125V Connector

$81.31
$81.31

Industrial Fittings Now

Hubbell HBL27W47 20A/125V Connector

$81.31
Hubbell HBL27W47 20A/125V Connector

Product Description

Overview

Hubbell HBL27W47 20A/125V Connector

Product Specifications

  • UPC: 78358513146
  • Number Of Poles: 2
  • Number Of Wires: 3
  • Ground Type: Grounding
  • Material: Thermoplastic Elastomer
  • Color: Yellow
  • Cord Size: 0.375 to 0.875 Inch
  • Approval: UL 498, CSA C22.2
  • Additional Information: Enclosure Type IP65/66/67; Power Rating 1 HP; Temperature Rating -40 to 60 Deg C; Overall Dimension 2.51 Inch Length x 2.51 Inch Width x 5.69 Inch Height; Material Nickel Plated Brass (Contact), White Nylon (Core/Contact Carrier), Black Elastomer (Bushing
  • Catalog Number: HBL27W47
  • Brand Name: Twist-Lock[R]
  • Model: HBL
  • Type: Polarized
  • Constructional Feature: Corrosion Resistant, Water Tight
  • Configuration: L5-20R
  • Voltage Rating: 125 Volt
  • Current Rating: 20 Amp
  • Catalog Description: WATERTIGHT DEVICES, TWIST-LOCK CONNECTOR, 20A, 125V, 2 POLE, 3 WIRE, THERMOPLASTIC ELASTOMER, NEMA L5-20R, YELLOW
  • Category: Plugs,Conn,Inlets,Outlets,Lampholdr
  • Full Technical Description: Polarized Type; Thermoplastic Elastomer Material; Yellow Color; L5-20R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Corrosion Resistant, Water Tight; 0.375 to 0.875 Inch Cord Size; TWIST-LOCK[R] Brand; Enclosure Type IP65/66/67; Power Rating 1 HP; Temperature Rating -40 to 60 Deg C; Overall Dimension 2.51 Inch Length X 2.51 Inch Width X 5.69 Inch Height; Material Nickel Plated Brass (Contact), White Nylon (Core/Contact Carrier), Black Elastomer (Bushing and Cone Seal), Nylon (Gotcha Ring), Pbt (Strain Relief Nut), Nickel Plated Brass (Terminal Screw), Clear Polycarbonate (Terminal Retainer), Stainless Steel (Hardware); Applicable Standard ANSI; HBL Model
  • Manufacturer: Hubbell Wiring Devices-Kellems
  • Manufacturer Brand: Hubbell Wiring Devices-Kellems
  • Sub Category: Locking Device Connector
  • Unspsc: 39121421
  • UPC 12 Digit: 783585131467
  • SKU Name: hubw hbl27w47
