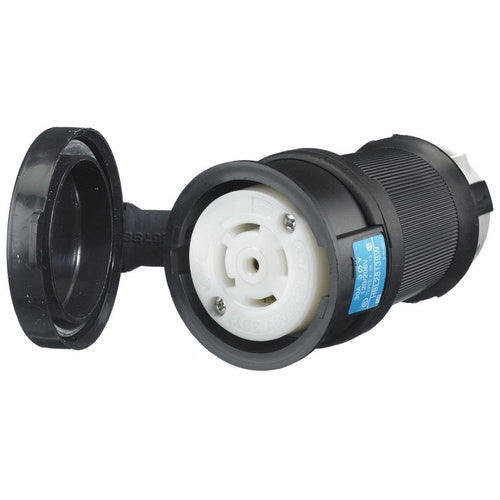

Hubbell HBL2813SW Locking Watertight Safety-Shroud Connector,30A120/208V,L21-30R

Overview

Hubbell HBL2813SW Locking Watertight Safety-Shroud Connector,30A120/208V,L21-30R

Product Specifications

• UPC: 78358523210
• Number Of Poles: 4
• Number Of Wires: 5
• Ground Type: Grounding
• Material: Valox Body/Clamp, Thermoplastic Polyester Interior
• Color: Black
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure NEMA 4/4X/12, IP66; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL2813SW
• Brand Name: Twist-Lock[R], Safety-Shroud[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Watertight, Impact Resistant
• Configuration: L21-30R
• Voltage Rating: 120/208 VAC Star 3-Phase
• Current Rating: 30 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, WATERTIGHT SAFETY-SHROUD, FEMALE CONNECTOR BODY, 30A 3-PHASE WYE 120/208V AC, 4- POLE 5-WIRE GROUNDING, NEMA L21-30 R, SCREW TERMINAL, BLACK PBT HOUSING, WHITE PBT CLAMPS.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Valox Body/Clamp, Thermoplastic Polyester Interior Material; Black Color; L21-30R Configuration; 5 Wire(S); UL 94/498, CSA C22.2 Approval; 120/208 VAC Star 3-Phase Voltage Rating; 30 Ampere Current Rating; Grounding; 4 Pole(S); Watertight, Impact Resistant; 0.35 to 1.15 Inch Cord Size; TWIST-LOCK[R], SAFETY-SHROUD[R] Brand; Enclosure NEMA 4/4X/12, IP66; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585232102
• SKU Name: hubw hbl2813sw
