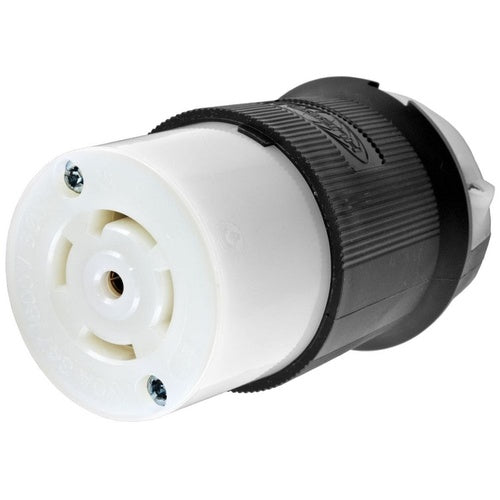

Hubbell HBL2833 Grounding Locking Plug-N L23-30R

Overview

Hubbell HBL2833 Grounding Locking Plug-N L23-30R

Product Specifications

• UPC: 78358503974
• Number Of Wires: 5
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL2833
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant
• Configuration: L23-30R
• Voltage Rating: 347/600 Volt AC Star 3-Phase
• Current Rating: 30 Amp
• Number Of Poles: 4
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FEMALE CONNECTOR BODY, 30A 3-PHASEWYE 347/600V AC, 4-POLE 5-WIRE GROUNDING, L23-30R, SCREW TERMINAL, BLACK AND WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; L23-30R Configuration; 5 Wire(S); UL 498, CSA C22.2 Approval; 347/600 Volt AC Star 3-Phase Voltage Rating; 30 Amp Current Rating; Grounding; 4 Pole(S); Impact/Chemical Resistant; 0.35 to 1.15 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585039749
• SKU Name: hubw hbl2833
