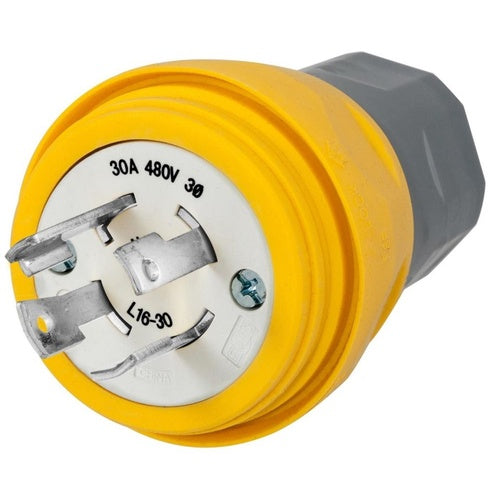

Hubbell HBL28W76 Plug Watertight, 3P 30A 480V, L16-30P, Yellow

Overview

Hubbell HBL28W76 Plug Watertight, 3P 30A 480V, L16-30P, Yellow

Product Specifications

• UPC: 78358513172
• Number Of Wires: 4
• Material: Thermoplastic Elastomer
• Color: Yellow
• Cord Size: 0.375 to 1 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Enclosure Rating 4/4X/12/6/6P; Blade Material Brass; Temperature Rating -40 to 60 Deg C; Applicable Standard WD-1/6, ANSI
• Catalog Number: HBL28W76
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Corrosion Resistant, Water Tight
• Configuration: L16-30P
• Voltage Rating: 480 Volt AC 3-Phase
• Current Rating: 30 Amp
• Number Of Poles: 3
• Catalog Description: WATERTIGHT DEVICES, TWIST-LOCK PLUG, 30A, 3 PHASE 480V AC, 3 POLE, 4 WIRE, THERMOPLASTIC ELASTOMER, NEMA L16-30P, YELLOW.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Thermoplastic Elastomer Material; Yellow Color; L16-30P Configuration; 4 Wire(S); UL 498, CSA C22.2 Approval; 480 Volt AC 3-Phase Voltage Rating; 30 Amp Current Rating; 3 Pole(S); Corrosion Resistant, Water Tight; 0.375 to 1 Inch Cord Size; TWIST-LOCK[R] Brand; Enclosure Rating 4/4X/12/6/6P; Blade Material Brass; Temperature Rating -40 to 60 Deg C; Applicable Standard Wd-1/6, ANSI
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585131726
• SKU Name: hubw hbl28w76
