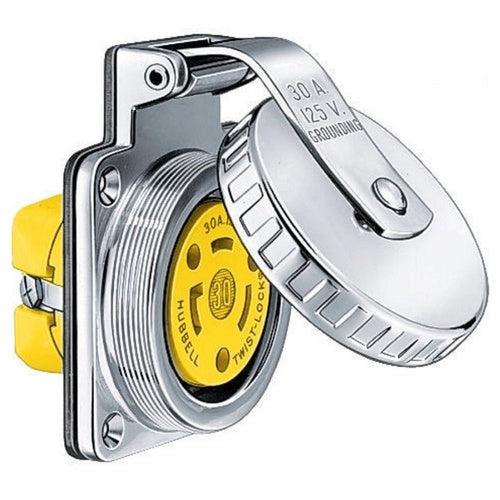

Hubbell HBL303SSO Marine Hull Outlet, 30A 125V, Ss

Overview

Hubbell HBL303SSO Marine Hull Outlet, 30A 125V, Ss

Product Specifications

• UPC: 78358504067
• Material: Stainless Steel
• Color: Metallic
• Approval: UL, CSA
• Additional Information: Enclosure IP56
• Catalog Number: HBL303SSO
• Brand Name: Twist-Lock[R]
• Configuration: L5-30R
• Voltage Rating: 125 V
• Current Rating: 30 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, MARINE GRADE, HULL INLET, 30A 125V, 2-POLE 3-WIRE GROUNDING, L5-30R, SCREW TERMINAL, STAINLESS STEEL
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Stainless Steel Material; Metallic Color; L5-30R Configuration; 3 Wire(S); UL, CSA Approval; 125 V Voltage Rating; 30 Ampere Current Rating; Grounding; 2 Pole(S); TWIST-LOCK[R] Brand; Enclosure IP56
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585040677
• SKU Name: hubw hbl303sso

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
