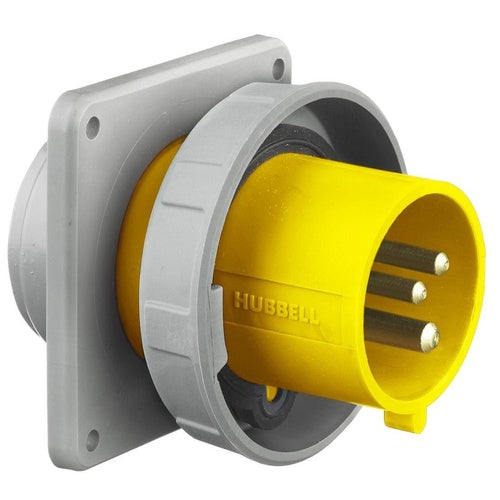

Hubbell HBL3100B4W Pin And Sleeve, Iec, Inlet, 2P3W, 100A 125V,4X/69K

Overview

Hubbell HBL3100B4W Pin And Sleeve, Iec, Inlet, 2P3W, 100A 125V,4X/69K

Product Specifications

• UPC: 78358540300
• Material: Zytel 101 Nylon
• Enclosure: IP67
• Approval: UL 1682/1686, CSA C22.2
• Additional Information: Applicable Standard IEC 309-1, IEC 309-2; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL3100B4W
• Type: Parallel
• Constructional Feature: Watertight
• Color Code: Yellow
• Voltage Rating: 125 VAC
• Current Rating: 100 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: HEAVY DUTY IEC PIN AND SLEEVE INDUSTRIAL GRADE MALE FLANGED INLET, 100A 125V AC, 2-POLE 3-WIRE GROUNDING, TERMINAL SCREWS, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Parallel Type; Zytel 101 Nylon Material; 3 Wire(S); UL 1682/1686, CSA C22.2 Approval; 125 VAC Voltage Rating; IP67 Enclosure; 100 Ampere Current Rating; 2 Pole(S); Watertight; Yellow Color Code; Applicable Standard IEC 309-1, IEC 309-2; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585403007
• SKU Name: hubw hbl3100b4w
