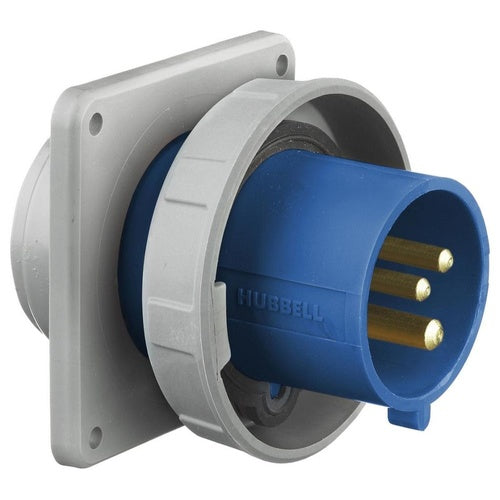

Hubbell HBL3100B6W Pin And Sleeve,Inlet,2P3W, 100/125A 200-250V, 4X/69K

Overview

Hubbell HBL3100B6W Pin And Sleeve,Inlet,2P3W, 100/125A 200-250V, 4X/69K

Product Specifications

• UPC: 78358540301
• Number Of Wires: 3
• Cable Size: 3 to 1/0 AWG
• Material: Thermoplastic
• Enclosure: IP67
• Approval: UL 1682, CSA C22.2
• Additional Information: Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1, IEC 60309-2
• Catalog Number: HBL3100B6W
• Type: Male
• Constructional Feature: Water Tight
• Color Code: Blue
• Voltage Rating: 250 Volt AC
• Current Rating: 100 Amp
• Number Of Phases: 1
• Number Of Poles: 2
• Catalog Description: HEAVY DUTY IEC PIN AND SLEEVE INDUSTRIAL GRADE MALE FLANGED INLET, 100A 250V AC, 2-POLE 3-WIRE GROUNDING, TERMINAL SCREWS, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Male Type; Thermoplastic Material; 3 Wire(S); 3 to 1/0 AWG Cable Size; 1 Phase(S); UL 1682, CSA C22.2 Approval; 250 Volt AC Voltage Rating; IP67 Enclosure; 100 Amp Current Rating; 2 Pole(S); Water Tight; Blue Color Code; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1, IEC 60309-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585403014
• SKU Name: hubw hbl3100b6w

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
