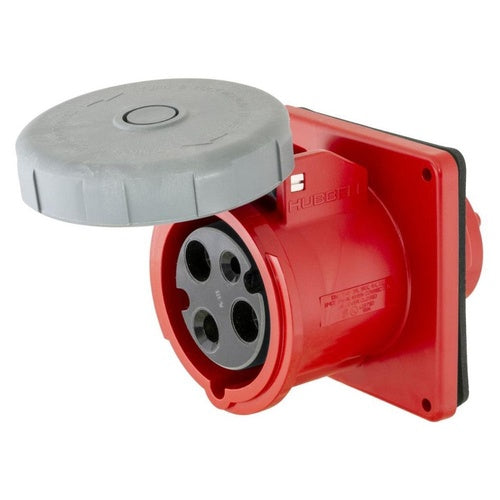

Hubbell HBL3100R7W Pin & Sleeve, Iec, Receptacle, 2P3W, 100A 480V,4X/69K

Overview

Hubbell HBL3100R7W Pin & Sleeve, Iec, Receptacle, 2P3W, 100A 480V,4X/69K

Product Specifications

• UPC: 78358540313
• Material: Zytel 101 Nylon
• Grade: Industrial
• Approval: UL 62/94/1682/1686C2, CSA C22.2
• Additional Information: Applicable Standard IEC 60309-1 IEC 60309-2; Enclosure IP67; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL3100R7W
• Type: Polarized
• Constructional Feature: Impact Resistant, Watertight, Corrosion Resistant, Chemical Resistant
• Voltage Rating: 480 V
• Current Rating: 100 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Door Type: Spring Cover
• Catalog Description: HEAVY DUTY IEC PIN AND SLEEVE INDUSTRIAL GRADE FEMALE RECEPTACLE, 100A 480V AC, 2-POLE 3-WIRE GROUNDING, TERMINAL SCREWS, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Zytel 101 Nylon Material; 3 Wire(S); Industrial Grade; UL 62/94/1682/1686C2, CSA C22.2 Approval; 480 V Voltage Rating; 100 Ampere Current Rating; 2 Pole(S); Impact Resistant, Watertight, Corrosion Resistant, Chemical Resistant; Spring Cover; Applicable Standard IEC 60309-1 IEC 60309-2; Enclosure IP67; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585403137
• SKU Name: hubw hbl3100r7w
