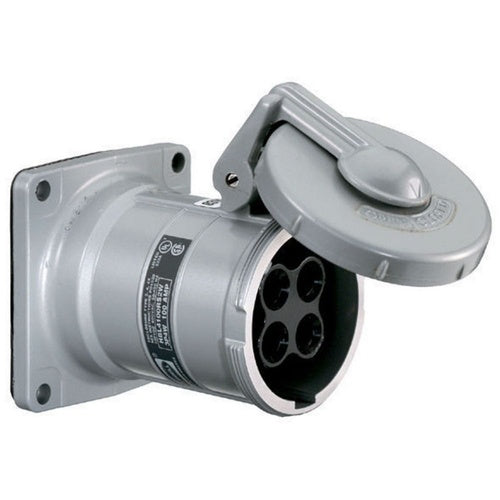

Hubbell HBL3100RS2W Pin & Sleeve, Ins, Receptacle, 2P3W, 100A 600V, S2

Overview

Hubbell HBL3100RS2W Pin & Sleeve, Ins, Receptacle, 2P3W, 100A 600V, S2

Product Specifications

• UPC: 78358501100
• Grounding Style: 2, Shell, Extra Pole
• Door Type: Spring Cover
• Material: Epoxy Painted Aluminum
• Grade: Industrial
• Approval: UL 50/62/1682/1686, CSA C22.2
• Additional Information: Applicable Standard IEC 60309-1 IEC 60309-2; Enclosure NEMA 3/4/4X; Operating Temperature -25 to 75 Deg C
• Catalog Number: HBL3100RS2W
• Brand Name: Insulgrip[R]
• Type: Polarized
• Constructional Feature: Watertight, Dusttight, Impact Resistant
• Voltage Rating: 600 VAC/250 VDC
• Current Rating: 100 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: HEAVY DUTY INSULGRIP PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE FEMALE RECEPTACLE, 100A 600V AC, 2-POLE 3-WIRE GROUNDING STYLE 2,TERMINAL SCREWS
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Epoxy Painted Aluminum Material; 3 Wire(S); Industrial Grade; UL 50/62/1682/1686, CSA C22.2 Approval; 600 Vac/250 VDC Voltage Rating; 100 Ampere Current Rating; 2 Pole(S); Watertight, Dusttight, Impact Resistant; Spring Cover; 2, Shell, Extra Pole Grounding Style; INSULGRIP[R] Brand; Applicable Standard IEC 60309-1 IEC 60309-2; Enclosure NEMA 3/4/4X; Operating Temperature -25 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585011004
• SKU Name: hubw hbl3100rs2w

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
