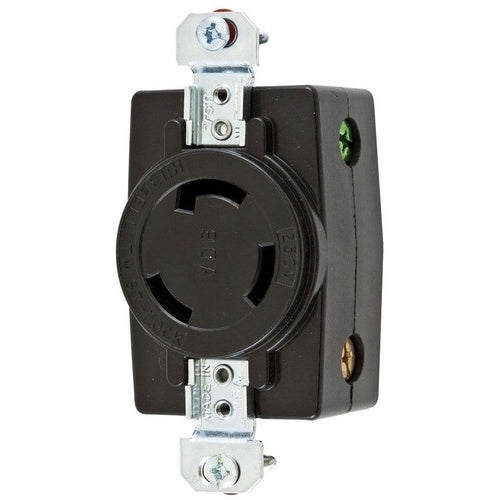

Hubbell HBL3330 Locking Receptacle-3P3W30A250V

Overview

Hubbell HBL3330 Locking Receptacle-3P3W30A250V

Product Specifications

• UPC: 78358533305
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Face Outer Diameter: 1.57 Inch
• Material: Nylon (Face), Glass Reinforced Thermoplastic Polyester (Base)
• Color: Black
• Wiring: Back, Side
• Mounting: Flush
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL3330
• Brand Name: Wiring Device-Kellems
• Type: Single
• Constructional Feature: Abuse/Corrosion Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 125/250 Volt AC
• Current Rating: 30 Amp
• Number Of Poles: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLUSH RECEPTACLE, 30A 125/250V, 3-POLE 3-WIRE NON GROUNDING, NON-NEMA, SCREW TERMINAL, BLACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Nylon (Face), Glass Reinforced Thermoplastic Polyester (Base) Material; Black Color; Non-NEMA Locking Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125/250 Volt AC Voltage Rating; Flush Mounting; 30 Amp Current Rating; Non-Grounding; 3 Pole(S); Abuse/Corrosion Resistant; Back, Side Wiring; 1.57 Inch Face Outer Diameter; TWIST-LOCK[R] Brand; Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585333052
• SKU Name: hubw hbl3330
