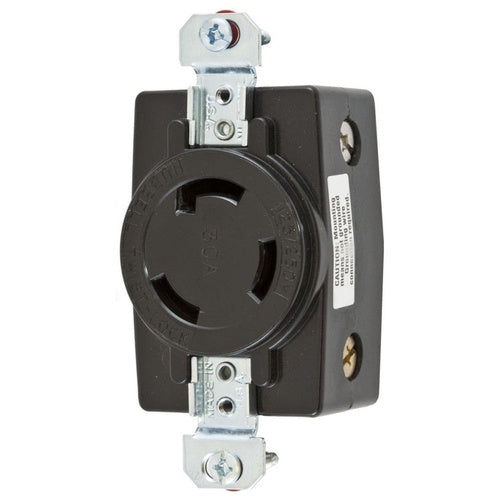

Hubbell HBL3330G Locking Receptacle-2P3W30A250V

Overview

Hubbell HBL3330G Locking Receptacle-2P3W30A250V

Product Specifications

• UPC: 78358533310
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Face Outer Diameter: 1.57 Inch
• Material: Thermoset
• Color: Black
• Wiring: Back
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2
• Catalog Number: HBL3330G
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Single Locking
• Constructional Feature: Abuse Resistant, Corrosion Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 250 V
• Current Rating: 30 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLUSH RECEPTACLE, 30A 250V AC, 2-POLE 3-WIRE GROUNDING, NON-NEMA, SCREW TERMINAL, BLACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Thermoset Material; Black Color; Non-NEMA Locking Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 250 V Voltage Rating; Flush Mount Mounting; 30 Ampere Current Rating; Grounding; 2 Pole(S); Abuse Resistant, Corrosion Resistant; Back Wiring; 1.57 Inch Face Outer Diameter; TWIST-LOCK[R] Brand; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585333106
• SKU Name: hubw hbl3330g
